Advanced Vacuum Glass .
for Better Energy Efficiency
Designed for high-performance windows, facades and retrofit applications with demanding thermal requirements.
24+
Years of experience
20+
Export countries
30,000+
㎡ PRODUCTION FACILITY
KEY PERFORMANCE
WHY CHOOSE VACUUM GLASS?
Designed for demanding thermal and architectural requirements.
01 — Superior Thermal Insulation
Excellent thermal performance helps improve building energy efficiency.
02 — Slim & Lightweight
A thinner glass structure provides more flexibility for modern windows and retrofit applications.
03 — Long-Term Stability
Precision manufacturing supports reliable vacuum integrity and consistent performance over time.
04 — Low U-Value Performance
Vacuum insulation helps reduce heat transfer and improve the thermal efficiency of high-performance glazing.
Why Choose Us
WHY SHEN-SHILEI

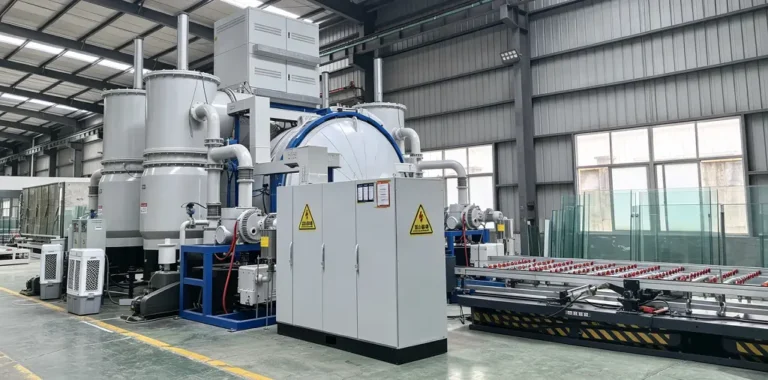

Fully automatic one-step vacuum glass manufacturing with minimal manual intervention.
01
ONE-STEP PROCESS
Integrated vacuum forming and sealing in one controlled process.
02
LESS HANDLING
Fewer intermediate transfers help reduce contamination, scratches and process variation.
03
RELIABLE VACUUM INTEGRITY
Deep vacuum evacuation and high-temperature sealing are completed under controlled conditions.
04
CONSISTENT BATCH PRODUCTION
Standardized processing supports stable quality and efficient large-scale production.
MANUFACTURING PROCESS
Precision Manufacturing for Vacuum Glass

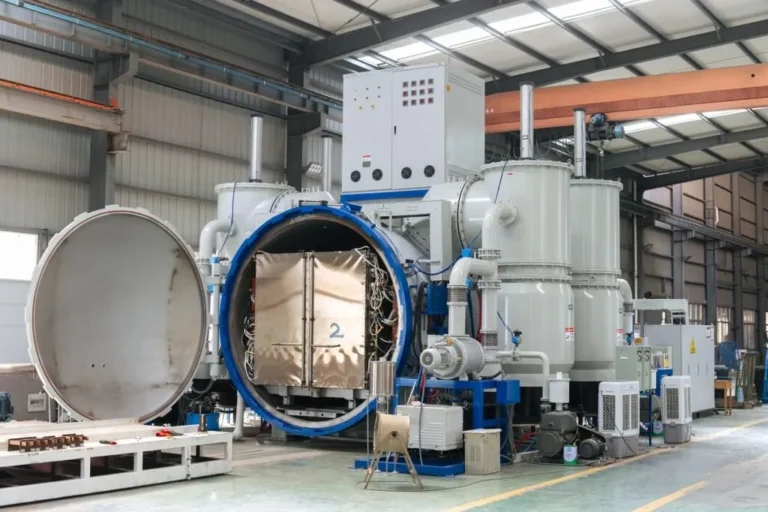

Our 10-layer vacuum furnace integrates evacuation, high-temperature sealing and curing into one continuous process—reducing handling, improving process consistency and supporting reliable vacuum performance.
What is Vacuum Insulated Glass?
Vacuum Insulated Glass (VIG) Summary
1. What is vacuum glass?
2. How vacuum glass works?
(1) Elimination of conductive & convective heat transfer: Air is pumped out of the inter-pane cavity to form a high-vacuum environment. Without gas molecules, heat transfer via conduction and convection between the two glass panes is almost eliminated.
(2) Suppression of radiative heat transfer: A low‑E coating is applied on the glass surface to reflect infrared radiant heat, which compensates for the heat transfer that vacuum cannot block.

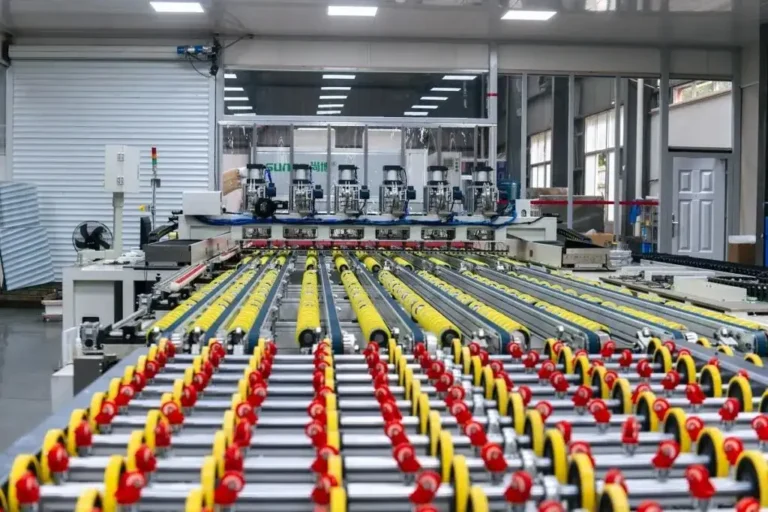

(3) Structural support & long-term vacuum retention: Micro-pillars maintain the spacing of glass panes against atmospheric pressure. Hermetic edge sealing and internal getters preserve the vacuum state over the service life to sustain stable thermal performance.
Key feature: Compared with conventional insulated glass units, VIG delivers much better thermal insulation with a thinner profile, suitable for retrofit projects where original window frame depth is limited.
ENERGY PERFORMANCE
Better Glass Performance, Lower Energy Consumption
Type of Glass | U Value | Shading Coefficient | Total Power Consumption (kwh) | Power Consumption per Unit Area (kwh) | Carbon Dioxide Emissions (tons) | Electric Cost (1 RMB/kwh) |
Normal Insulating Glass | 3 | 0.87 | 6560460 | 2296 | 3328 | 6560460 |
LOW-E Insulating Glass | 1.7 | 0.73 | 4971798 | 1740 | 2521 | 4971798 |
LOW-E Vacuum Glass | 0.8 | 0.71 | 4226112 | 1479 | 2143 | 4226112 |
LOW-E Vacuum Composite Glass | 0.7 | 0.58 | 3525858 | 1234 | 1788 | 3525858 |
Note: the data were calculated according to ASHRAE standard.(air conditioning opening time: 6 months/year)
PROJECT EXPERIENCE
Proven Through Real-World Projects
As a vacuum glass manufacturer, SHEN-SHILEI provides glass solutions trusted across architectural, commercial and industrial projects worldwide.
Certifications & Compliance
Built to National & International Standards
Our group adheres to rigorous national and international standards across manufacturing, quality management, environmental responsibility, and product compliance. These certifications demonstrate the foundation of our capabilities and our commitment to delivering reliable glass products to global markets.
FAQ
Questions Before You Order?
What is the service life of vacuum glass?
SHEN-SHILEI vacuum glass is designed for long-term performance. Our one-step manufacturing process creates a fully sealed vacuum cavity with stable vacuum integrity. Under standard installation and normal operating conditions, our vacuum glass is designed for a service life of up to 50 years, making it suitable for long-term energy-efficient buildings and high-performance glazing applications.
What is your MOQ for vacuum glass?
We offer flexible MOQ options for B2B vacuum glass orders. There is no strict MOQ for formal bulk orders, and we can support both small-batch trial orders and larger project requirements. MOQ may vary depending on glass size, configuration, Low-E coating and customization requirements.
How long does it take to produce vacuum glass samples?
Standard vacuum glass samples can typically be completed within 3–5 working days. Custom sizes or special Low-E configurations generally require 5–7 working days. Sample delivery can be arranged by international express services such as DHL or FedEx, depending on the destination and shipping requirements.
What warranty do you provide for vacuum glass?
SHEN-SHILEI provides a 25-year manufacturer warranty for vacuum glass products. The warranty covers qualifying manufacturing-related issues, including non-artificial vacuum leakage or structural failure, subject to the applicable warranty terms. Our automated one-step production process is designed to support consistent quality and long-term performance.

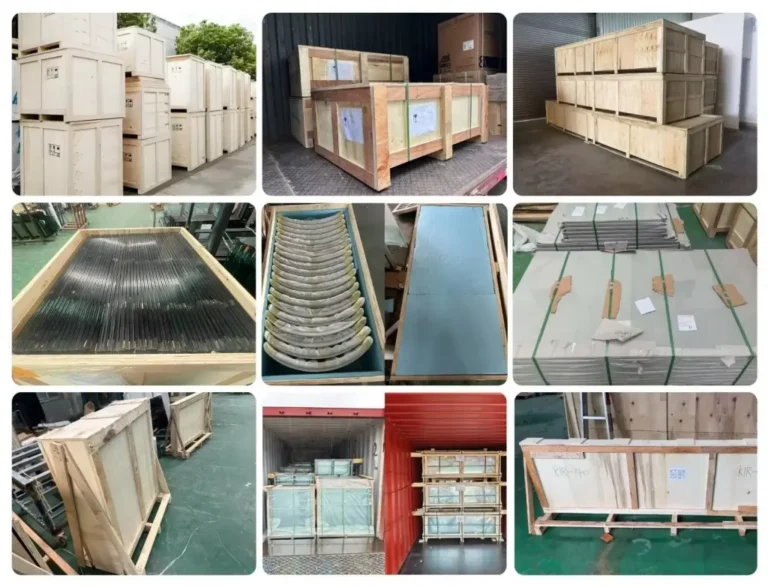

How is vacuum glass packaged and shipped internationally?
Vacuum glass is packed using export-grade wooden crates, protective cushioning and anti-collision measures to help protect the glass during long-distance transportation. We support international shipping arrangements and commonly used trade terms such as FOB, CIF and DDP, depending on project requirements and destination.
REQUEST A QUOTATION
Get a Quote for Your Vacuum Glass Project
Share your project requirements and our team will prepare a suitable vacuum glass solution and quotation.
What to include
Glass type, size, thickness, quantity, application, destination and target delivery date.
